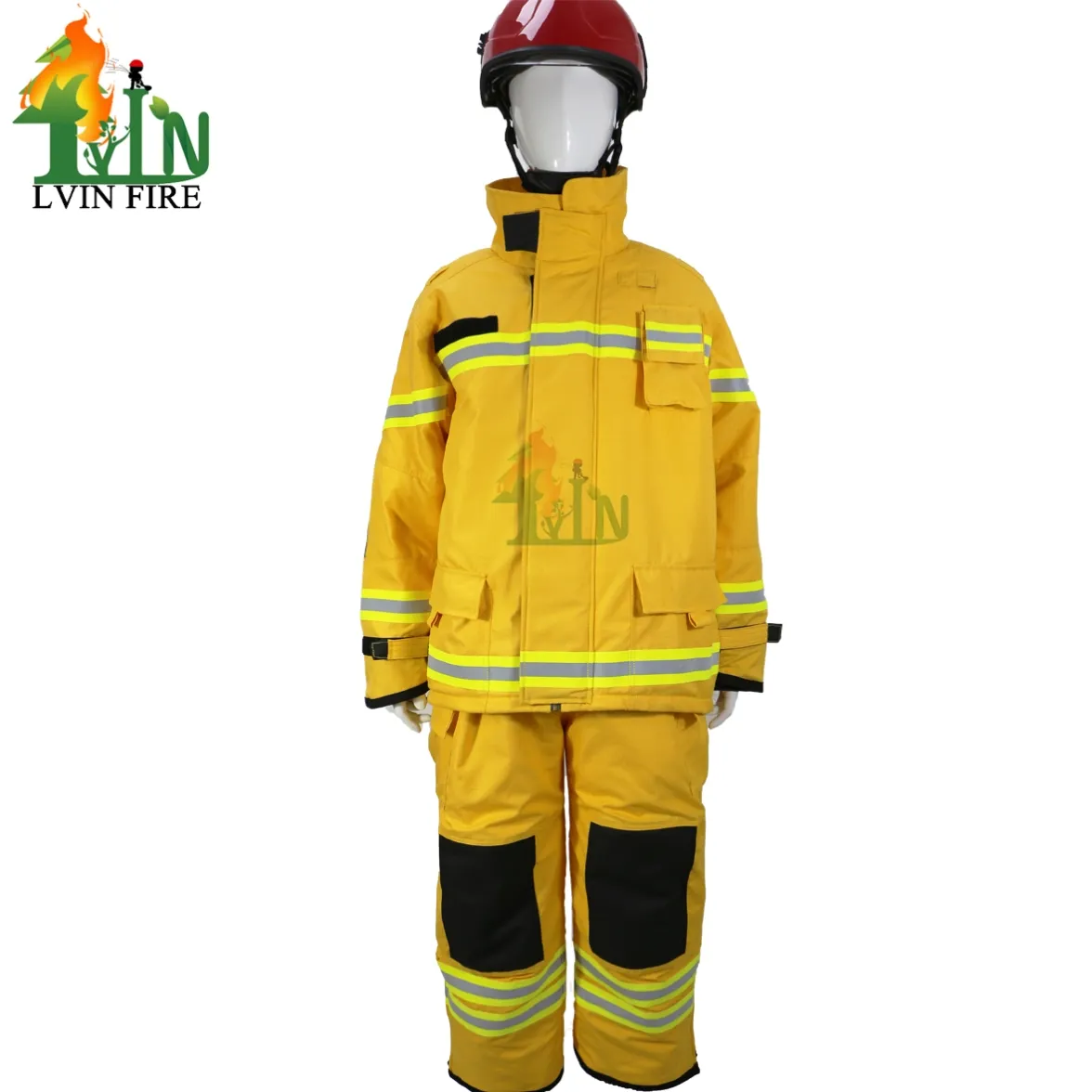

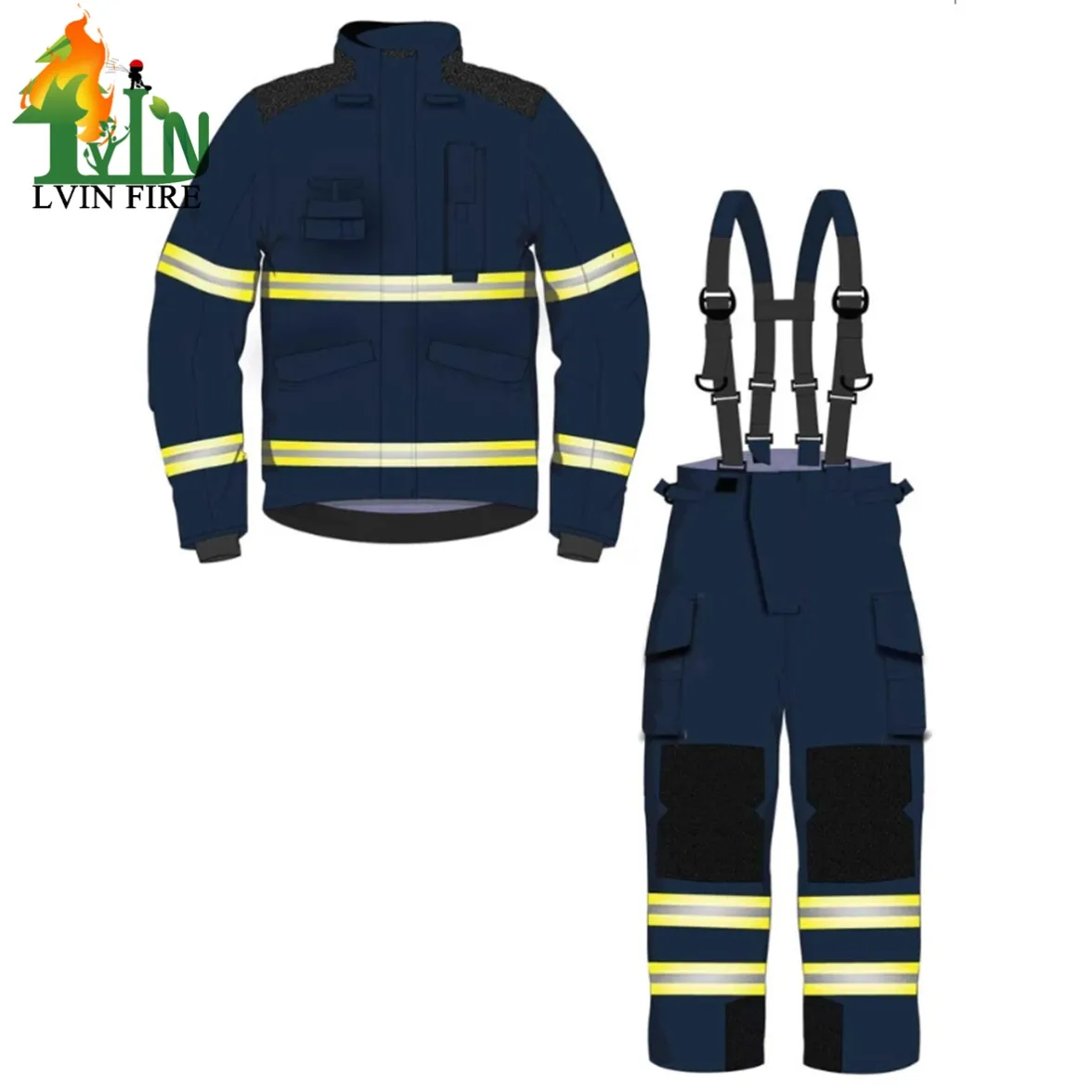

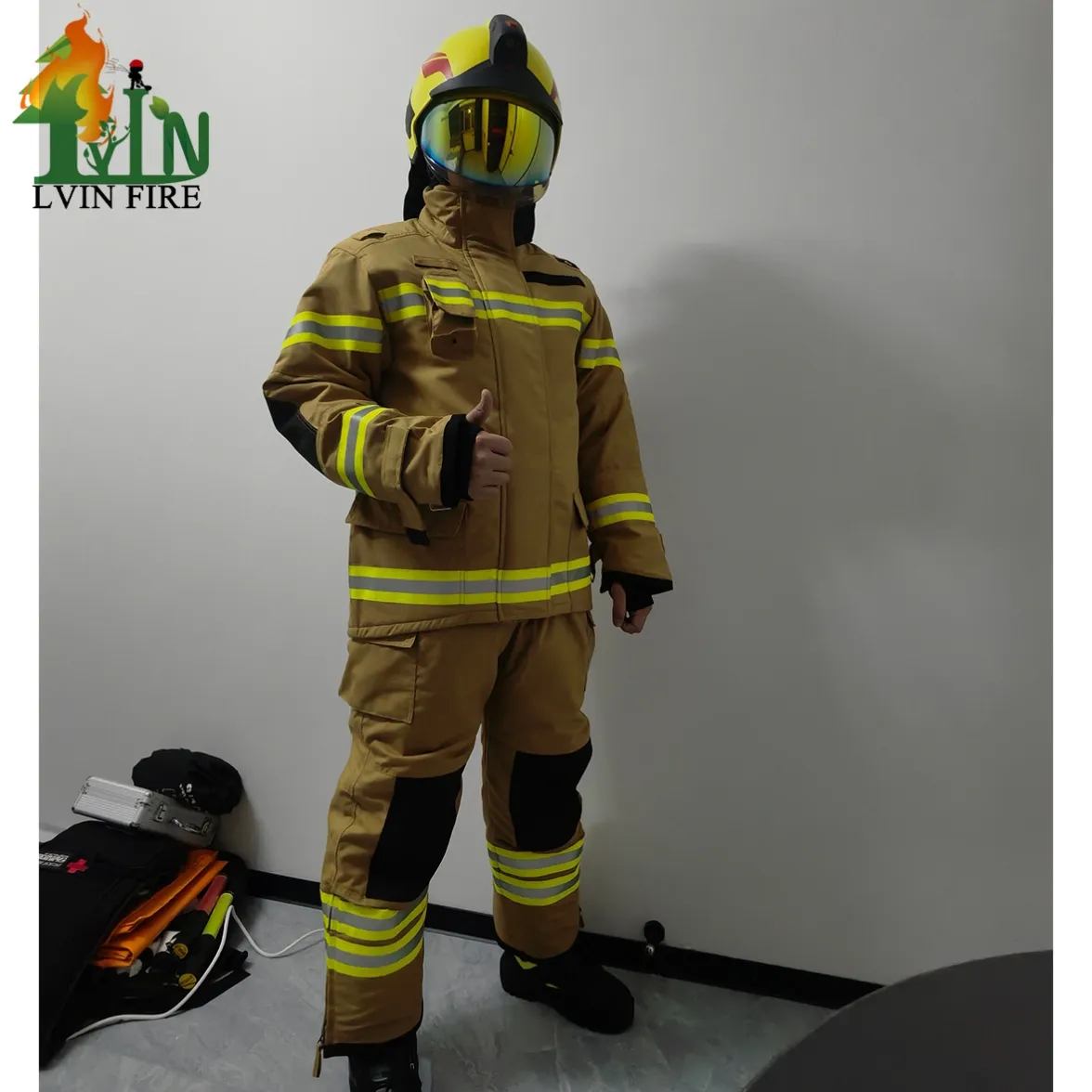

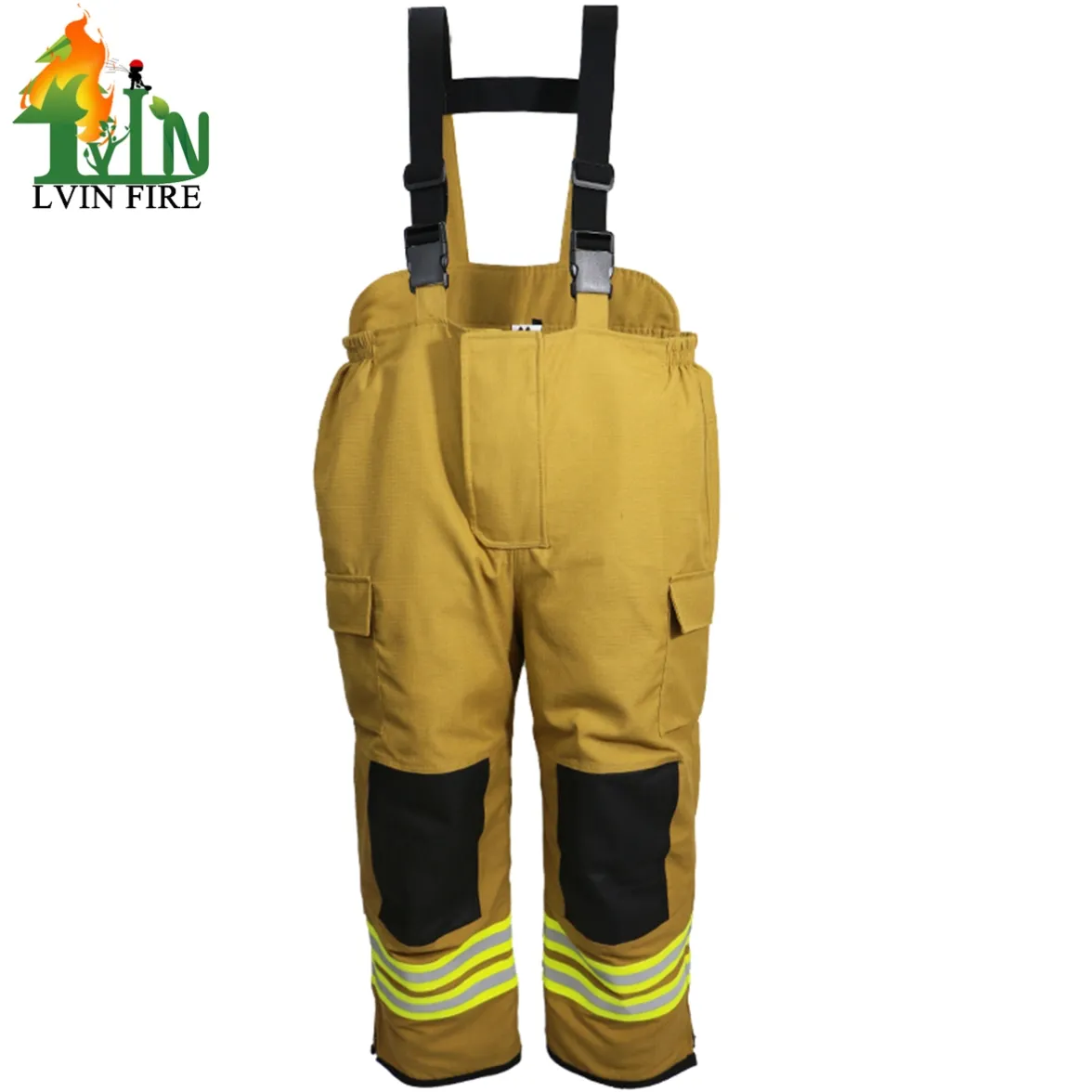

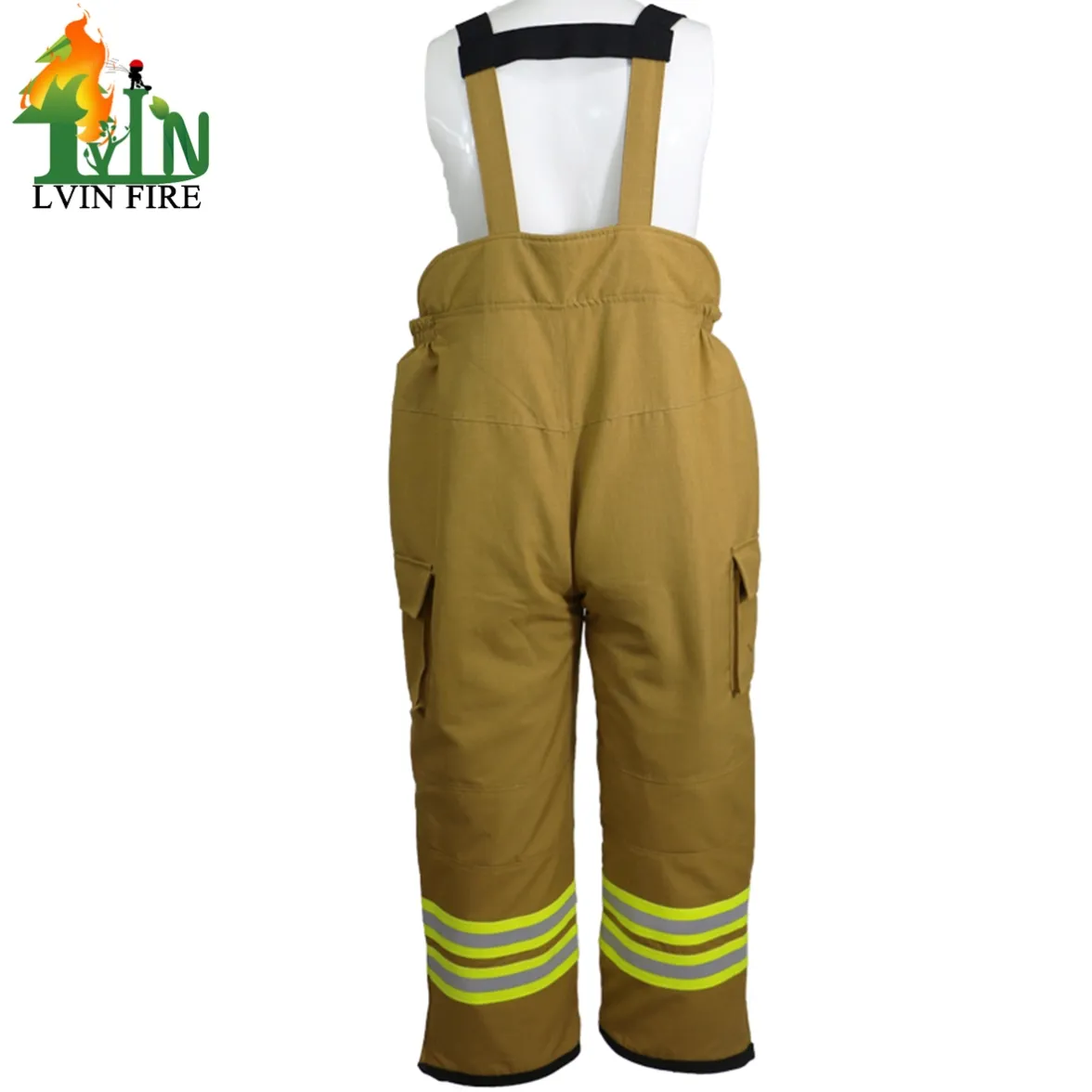

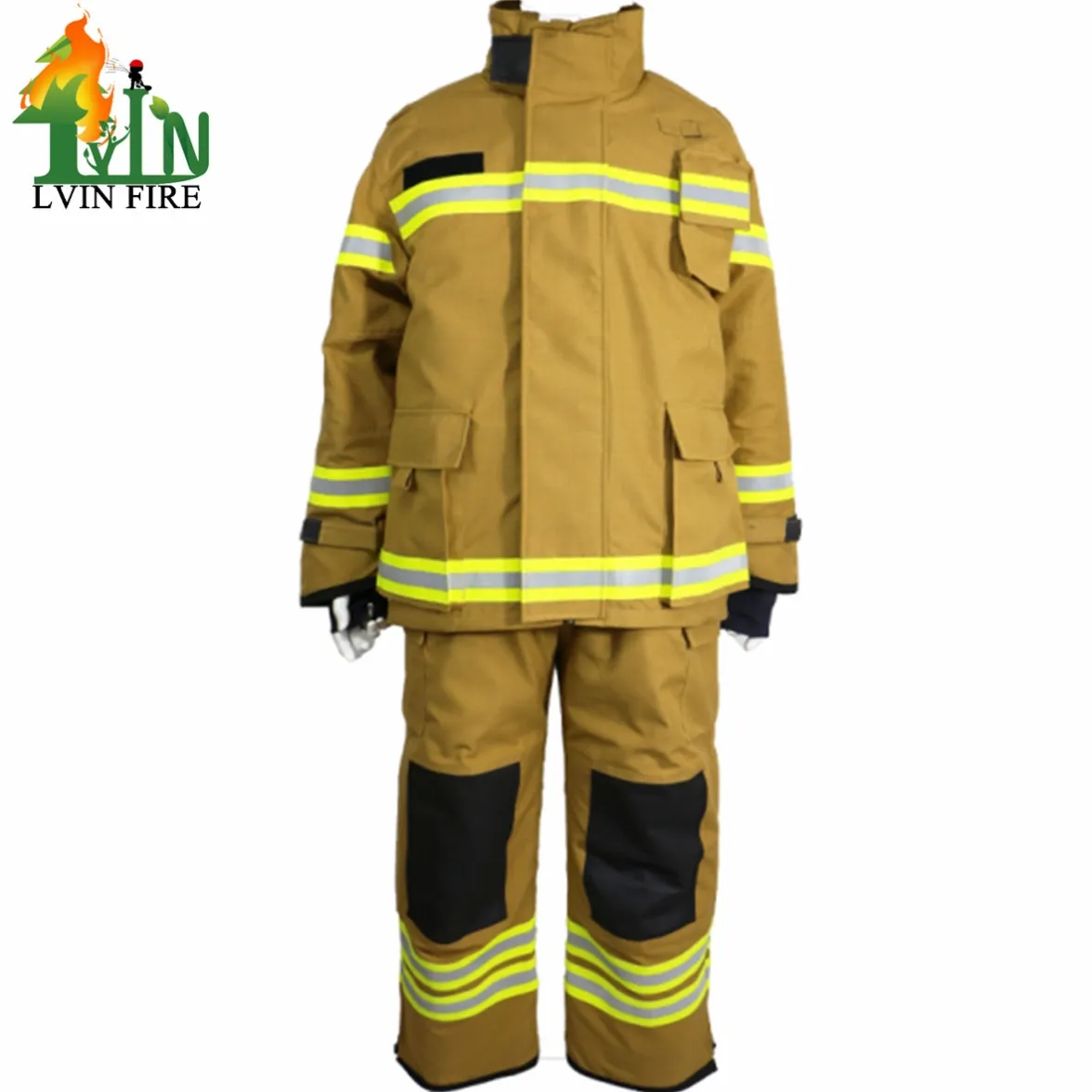

Structural Fireman Suit
Fire Figthing Suit
LV-FS104 Nomex Fireman suits with kevlar reinforcement Material Structural: Outer Layer: 93% Nomex/5% Kevlar/2% Anti-stastic thickness 210g/m² Moisture Layer: 65% aramid needlefelt, 20% PTFE, 15% PU, thickness 115g/m² Inner Lining Layer: Flame Retardant Material, thickness 120g/m² Standard:CE approved, EN469:2020 ，NFPA1971:2008 standard
Technical Parameters:
Contact Heat with a contact temperature of 250 ºC. Threshold time of at least 10 s.
Flame Heat Transfer HTI₂ ₄ : ≥ 13,0s, (HTI₂ ₄ - ₁ ₂ ) : ≥ 4,0s
Heat Radiation TransferRHTI₂ ₄ : ≥ 18,0s,RHTI₂ ₄ - ₁ ₂ : ≥ 4,0s
Heat flux at 40kW/m²
Heat Resistance Materials Performanc at (180 ± 5) ºCe Requirement not ignite or melt, not shrink more than ≤ ±5%
Flame Spread (Outer material)Performance Requirement a contact temperature of 250 ºC. Threshold time of at least 10 s.
Water vapour resistance≤ 30 m² Pa/W
Damaged length : ≤10cm
Renewal burning time : ≤2s
Ventilation volume : ≥5000g/m224h
TPP value : ≥43cal/cm
Wet traction ≥ 3 degree
Hydrostatic pressure : ≥17000pa
After flame time ≤2s
After glowtime ≤10s
Tensile Strength≥ 450N
Tearing strength ≥30N
Color : Navy blue,khaki,black,Orange,yellow etc for option
Weight : ≤3.5Kg/set
Size:S-XXXXL for options
Standard:CE approved,EN469:2020,NFPA1971:2008
